Features and Specifications of the FLIR M332 Stabilized Thermal IP Camera
The FLIR M332 Stabilized Thermal IP Camera, boasting a robust and all-weather design, is coupled with FLIR’s cutting-edge thermal imaging core. This high-end device is designed to provide enhanced awareness and thermal vision for law enforcement entities, commercial ventures, and recreational activities. Thanks to its advanced gyro-stabilization and high-performance thermal imaging, it is capable of identifying obstacles and targets in total darkness and turbulent sea conditions, thus ensuring safe navigation even under the most challenging circumstances.
Key Features
- Two-axis mechanical stabilization to negate the effects of pitch, heave, and yaw.
- Compatibility with MFDs from prominent marine electronics brands.
- H.264 IP stream video and HD-SDI lossless digital video interface inclusion.
- Integrated with AHRS (Attitude Heading Reference Sensor).

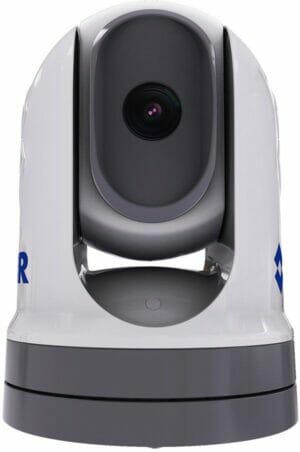

M332 Stabilized Thermal IP Camera
With an emphasis on navigation in low visibility environments, the M332’s thermal imaging grants visual access under extreme conditions such as complete darkness, glare, and light fog. It is powered by the FLIR Boson thermal imaging core and delivers a thermal resolution of 320×256 via the VOx Microbolometer. This device upon pairing with Raymarine Axiom MFDs, offers advanced features such as a smooth image refresh rate of up to 30 Hz, a pan/tilt adjustment range of 360° continuous pan, +/- 90° tilt, advanced onboard image processing technology, and augmented reality support through Clear Cruise.
Stability and Integration
The M332 provides stabilized viewing even in severe sea conditions ensuring constant target visibility. It is equipped with an AHRS (Attitude Heading Reference Sensor) that enables horizontal stabilization and automatically keeps the camera focused as you steer. With exceptional connectivity options such as the optional joystick control unit and multifunction navigation display integration (JCU2), as well as PTZ security camera functionality owing to its ONVIF compliance, the M332 transcends barriers for streamlined integration. The diverse video outputs include H.264 IP video stream, HD-SDI lossless, and analog video output.
